Custom OEM Insulated Sectional Overhead Door Integrated Pedestrian Pass Door 40mm Panel Polycarbonate Window Industrial
Produktdetails:
| Herkunftsort: | China |
| Markenname: | DESEO |
| Zertifizierung: | CE/ISO9001:2008 |
| Modellnummer: | SD5500 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Einheit |
|---|---|
| Preis: | USD 750-1300/UNIT |
| Verpackung Informationen: | Sperrholzverpackung, kundenspezifische Verpackung verfügbar |
| Lieferzeit: | 10-25 Tage |
| Zahlungsbedingungen: | T/T, L/C, Western Union |
| Versorgungsmaterial-Fähigkeit: | 200 Einheiten pro Monat |
|
Detailinformationen |
|||
| Material: | Verzinkter Stahl, Aluminiumlegierung, Edelstahl SUS304 | Plattenstärke: | 40mm |
|---|---|---|---|
| Panelbreite: | 450 mm / 550 mm | Kernmaterial: | Polyurethanschaum 48 kg/m3 |
| Passtür: | Integrierte Fußgängerdurchgangstür | Sichtfenster: | Polycarbonatglas 5,0–10,0 mm |
| Betrieb: | Elektrisch, Fernbedienung, manuell | Anpassung: | Größe, Farbe, Muster, Fenster, Durchgangstür |
| Farboptionen: | Weiß, Schwarz, Grau, Silber, Holzmaserung, individuelle RAL-Farbe | Oberflächenbehandlung: | Pulverbeschichtung, Einbrennlack |
| Windwiderstand: | Beaufort-Skala 11, 28 m/s | Lebensdauer: | 10 Jahre |
| Maximales Maß: | 12m x 8m | Anwendung: | Industrie, Gewerbe, Lager, Garage, Villa |
| Hervorheben: | custom insulated sectional overhead door,industrial sectional door with pedestrian pass,polycarbonate window sectional garage door |
||
Produkt-Beschreibung

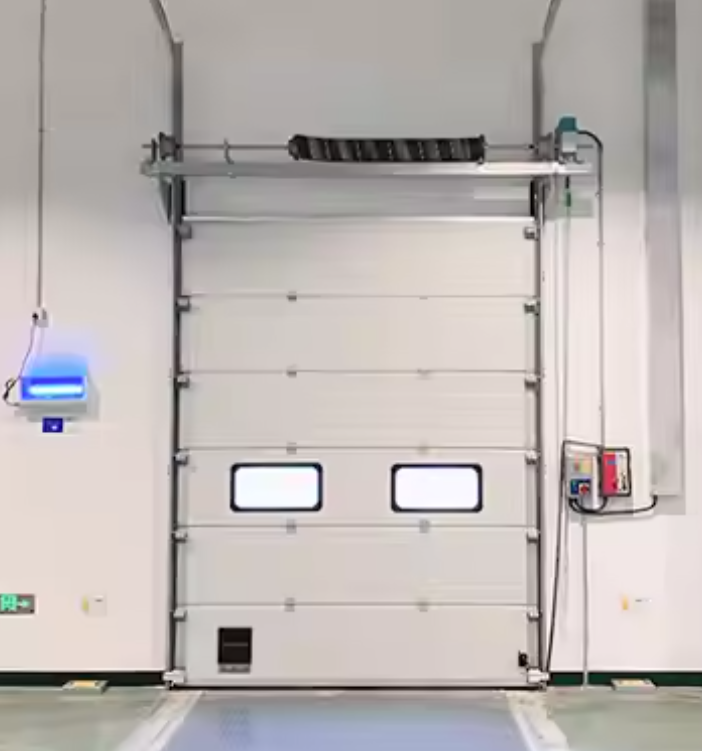

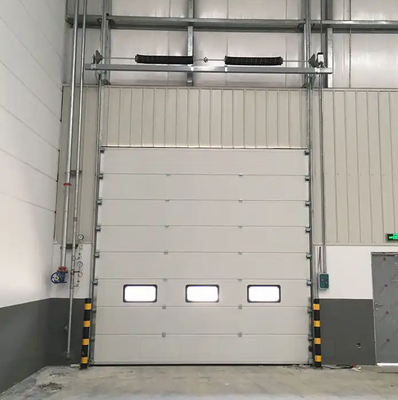

Custom OEM Insulated Sectional Overhead Door
The SD5500 is a fully customizable OEM insulated sectional overhead door designed to meet specific project requirements. With an integrated pedestrian pass door and optional polycarbonate vision windows, it offers unmatched flexibility for architects, contractors, and facility managers.
Key Features
- Integrated Pedestrian Pass Door: Built-in walk-through door eliminates the need for separate personnel access, improving workflow efficiency and reducing total installation cost.
- Polycarbonate Vision Windows: Optional 5.0-10.0mm polycarbonate glass panels provide natural light and visibility while maintaining insulation integrity. Available in clear or frosted finishes.
- Full OEM Customization: Custom dimensions up to 12m x 8m, any RAL color, multiple panel patterns (wood grain, smooth, classic, H-line, strips), and surface finishes to match architectural requirements.
- Multiple Material Options: Choose from galvanized steel, aluminum alloy, or SUS304 stainless steel based on environmental conditions and budget.
- Flexible Track Configurations: Standard lift, vertical lift, and high lift track systems available to suit different building layouts and clearance requirements.
Technical Specifications
| Material Options | Galvanized Steel, Aluminum Alloy, SUS304 Stainless Steel |
| Panel Thickness | 40mm |
| Panel Width | 450mm / 550mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Pass Door | Integrated Pedestrian Access Door |
| Vision Window | Polycarbonate Glass 5.0-10.0mm, Clear or Frosted |
| Surface Treatment | Powder Coating 30um or Baking Varnish |
| Color Options | White, Black, Gray, Silver, Wood Grain, Cream, Custom RAL |
| Pattern Options | Microwave, Smooth, Classic, H-Line, Strips |
| Operation | Electric, Remote Control, Manual Chain Hoist |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort Scale 11, 28m/s |
| Max Dimension | 12m x 8m |
| Service Life | 10 years / 100,000 cycles |
| Power Supply | 380V 50Hz / 220V 50Hz |
OEM Customization Options
- Custom panel dimensions (width and height up to 12m x 8m)
- Choice of steel plate thickness: 0.326mm, 0.45mm, 0.55mm, 0.6mm
- Panel core options: PU foam 40-48kg/m3 density
- Optional tempered glass windows (5.0-6.0mm) as alternative to polycarbonate
- Multiple track configurations: standard lift, vertical lift, high lift
- Custom packaging and private labeling available for OEM orders
Applications
Versatile for industrial factories, commercial warehouses, residential villa garages, retail showrooms, and any project requiring customized door dimensions with integrated personnel access.
